Light & Acoustic

In cooperation with the Tyrolean company Organoid Technologies a unique acoustic luminaire was created – sinus quiet. With organoid surfaces a special atmosphere comes up by this connection of sound absorption and technical lighting by planlicht.

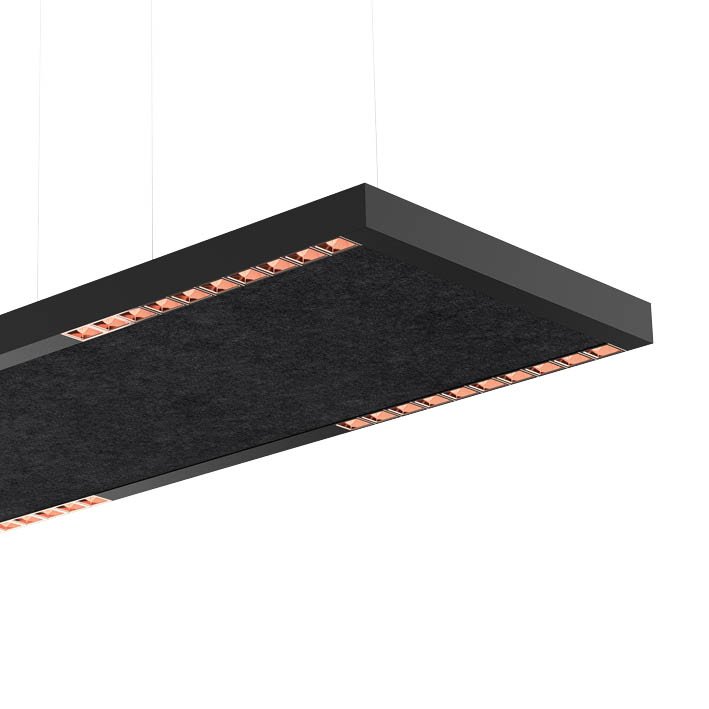

Especially for office solutions a unique fitting in light and sound was created with quadro quiet. 10 louvre colours and 7 different felt absorbers offer a variety of possibilities. And those who like it the alpine way: on demand quadro quiet can also be equipped with the organoid surfaces.

WHITEPAPER

Acoustic Luminaires
CATALOGUE

WHITEPAPER: Acoustic Luminaires

About sound, noise and acoustically effective lighting

A Whitepaper to provide you a little insight into the world of acoustics, in particular, room acoustics for office work places. We try to implement a holistic approach towards Human Centric Lighting (HCL) and therefore, not only does the quality of light matter to us, but the entire quality of life and work surrounding is in our focus. PLANLICHT acoustic luminaires combine the dynamic-white lighting solutions which can be regulated according to the natural course of daylight with the requirements of room acoustics for an ideal surrounding – a combination of high melanopic and acoustic efficiency levels. A proper planning, is it for the lighting as well as for the acoustic solution, is the key to success. Not only the single luminaires, the single products, but the entire solution approach provides us with the desired results. Simply HCL.

Absorber Panel

The acoustic panel is available in felt in the colours anthracite melange, lime and pebble – on request also in fire, black, chocolate and grey melange. Furthermore the natural ORGANOID surface Wildspitze, Mous and Wollä can be chosen.

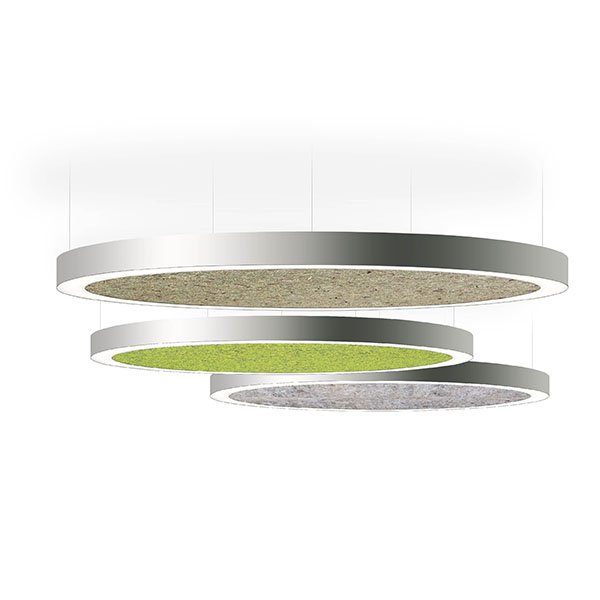

sinus quiet & quadro quiet with light acoustic module

Luminaire housing made of extruded aluminium in round or square design with integrated acoustical absorption for regulation of reverberation time, available in 3 organoid types or 7 felt surfaces.
High acoustic absorption (Class A, aw 0,90; EN ISO 354), Organoide® coating, high quality felt and light!

sinus quiet & quadro quiet are available as pendant (direct/indirect) and recessed mounted LED luminaire. The housing colours are powder-coated silver , black or white. It offers various technical possibilities: 3000K or 4000K satined or microprismatic cover, DALI dimmable or non-dim. Office pimped quadro quiet comes up with 10 different louvres.

From the heart of the Alps

Organoid coatings from Tirol

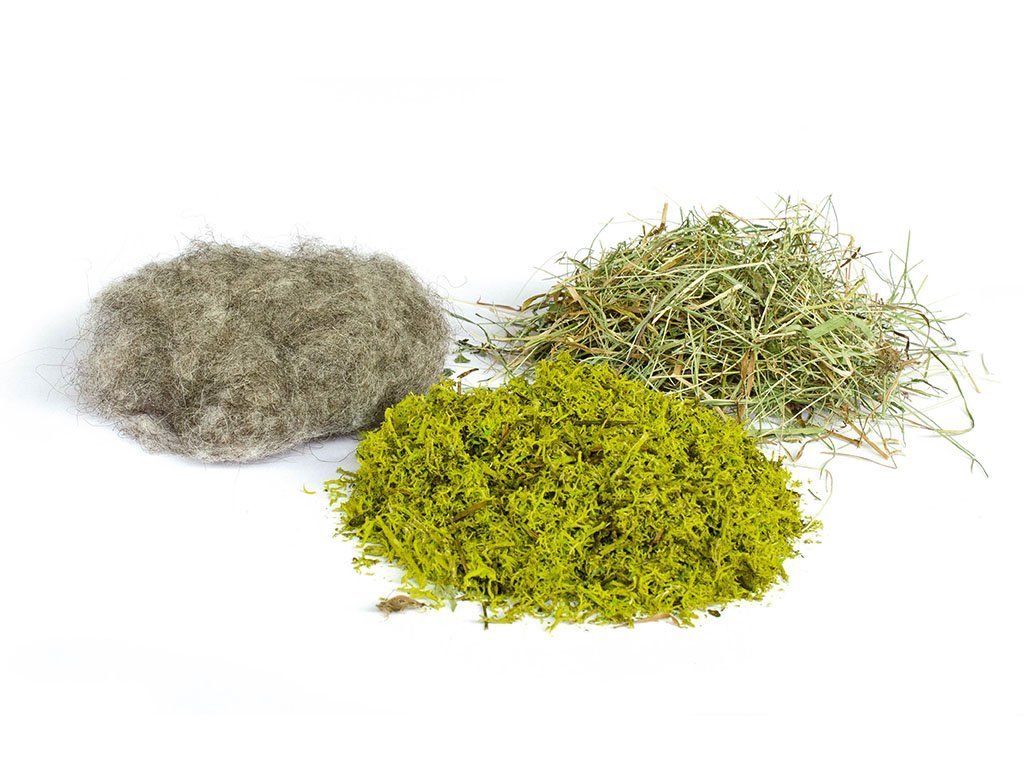

Organoid Technologies from the Tyrolean mountainside coats the acoustic panels with hand-picked materials. Beside the classics Wildspitze, wool and moss our quiet series can also be ordered on demand in several other extraordinary surfaces like flagrant jasmin or rose blossoms, like peppermint or tree bark or even filigree leaf skeletons.

Absorber Panel

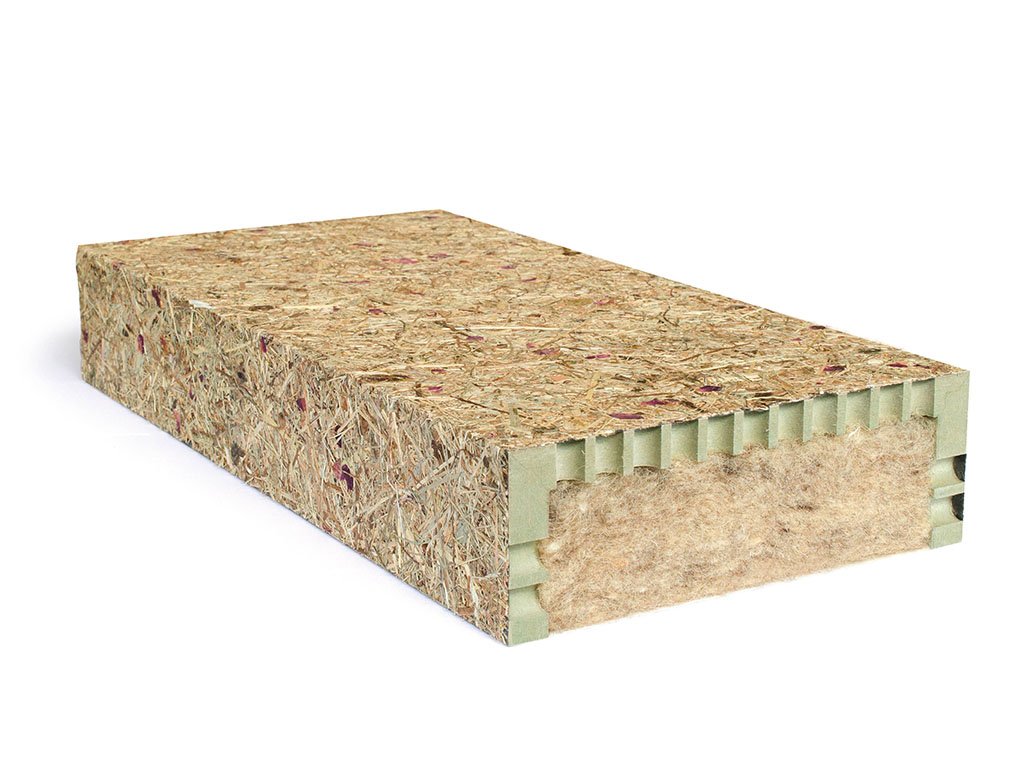

wood-based sheet material 16 mm, acoustic perforation, wall distance 0 mm, acoustic dumping 50 mm (recessed), 80 mm (pendant)

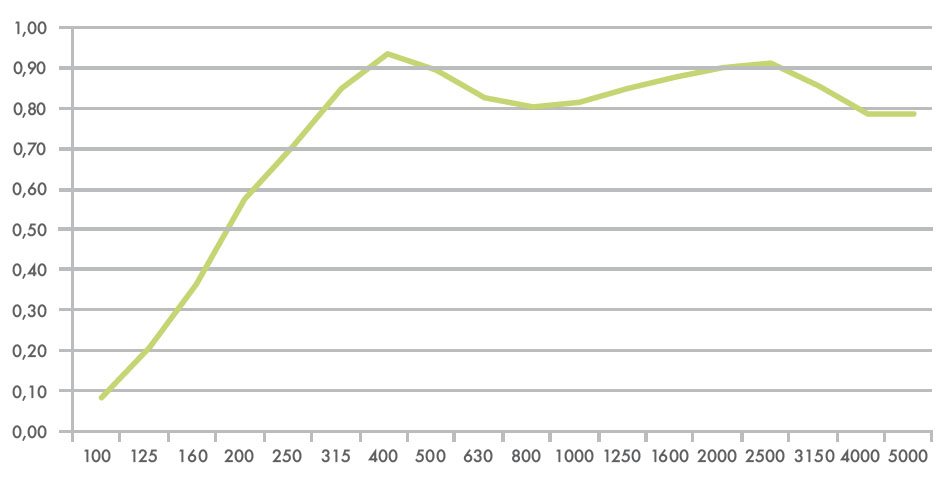

Sound Absorber Class A
alpha(w) 0,90 (according to EN ISO 354)
Carrier panel: wood-based material MDF E1
Acoustic processing: invisible perforation, ca. 48% open cross-section
Variants: other surfaces and sizes on request

Wildspitze

[vɪltʃpɪtsə]

The multi-layered scent with its light sweetness resembling honey hints at the vulnerability of the high-alpine nature, but also the freshness and coolness of the near glaciers.“ Thomas Bluth

High atop the hillsides of the Wildspitze, the highest mountain of Tirol, the fine alpine grasses are cut by hand at an altitude of 1,700 m above sea level, before being dried in the traditional way for several days in the sun. In addition to diverse grasses and mountain herbs, the mixture also includes arnica and daisies.

Wollä

[ˈvɔlæ]

The clean freshness and the warm security of the fine wool inspire all senses like spring.“ Thomas Bluth

The wool from Tirol mountain sheep is washed and prepared carefully with machines nearly 100 years old, where the machines are driven by the power of a mountain stream via leather belts. This tradition is continued with the extensive manual work for assembly of the wool fleeces.

Mous

[ˈməʊz]

Moss coloured green.

FOCUS Acoustic

Brochures
acoustic luminaires
sinus quiet & quadro quiet

Download PDF

Acoustic panel with organoid surface “Wildspitze”. Sound absorbing dumping made of sheep wool for ideal acoustic effects.
